RAY

“Ray Barbee is one of my very favorite skaters of all time, the epitome of style with a smile.” - George Powell - Powell-Peralta / Skate One Corp.

"I love things that just are" - Ray Barbee

3LT's RAY tripod is inspired by the life and works of Ray Barbee - Pro skater, musician and photographer. Designed with smooth lines and effortless style, Ray is a new level of innovation and engineering.

No Comply

Ray is a committment to the unconventional. The most modular and stylish tripod we have ever created.

Public Domain

The result of five years of development, design, engineering and testing, Ray is the best kept secret in our history.

Ban This

Imagine a tripod with five leg sections and two column sections that is so modular it converts to zero leg or column sections - then imagine multiple mounts, a sexy new tri-mount design, and leg locks designed to be useable with thick gloves, or impaired mobility. Then stop imagining, and look.

RAY

Innovative. Powerful. Class.

RAY KIT - bronze

With AirHed Vu
BUY NOW

RAY KIT - grey

With AirHed Vu
BUY NOW

RAY - bronze

Tripod only
BUY NOW

RAY - grey

Tripod only
BUY NOW

Built For Travel

At just 35cm folded, and weighing just 1.27kg, Ray is the perfect travel companion, whether you're hiking, flying or skateboarding.

Versatile & Modular

With 3 detachable legs, removable and reversible column, and multiple mounting points, Ray is a new breed of tripod.

Max Load to Weight Ratio of 24:1

Ray can support weights of 24 times his own weight making him a powerful tool for photographers of all levels. A load capability of 30kg is staggering, for a tripod this small.

Rapid Latch

The new Rapid-Latch angle adjustment was designed to be easy to adjust, even for those with impairments, or wearing thick gloves.

O-Pads

Our new O-Pads provide better grip, torque and water dispersement than any other leg lock on the planet.

A Range of Footwear

Ray has detachable rubber Bootz which can be replaced with any of our foot accessories, for maximum stability on any terrain, including our DOCZ foot stabilizer.

SPECIFICATIONS

Below is a list of Ray's specifications as just a tripod, and also as part of a kit with the awesome AirHed VU

RAY & RAYGREY

TRIPOD ONLY

  • Max Height 1.3 m / 51.1 "
  • Max Height w/o column 0.94 m / 36.96 "
  • Min Height 104 mm / 4.09 "
  • Monopod Max Height 1.34 m / 52.76 "
  • Folded Length 342 mm / 13.46 "
  • 5 Section Legs / 2 Section Column
  • Load Capacity at 23º - 30 kg / 66 lbs
    Load Capacity at 55º - 20 kg / 44 lbs
    Load Capacity at 80º - 10 kg / 33 lbs
  • Tripod Weight 1.27 kg / 2.8 lbs
  • Total Kit Weight N/A
  • Leg Angles 23º, 55º, 80º
  • Max Leg Tube Diameter 23 mm / 0.9 "

RAYKIT & RAYKITGREY

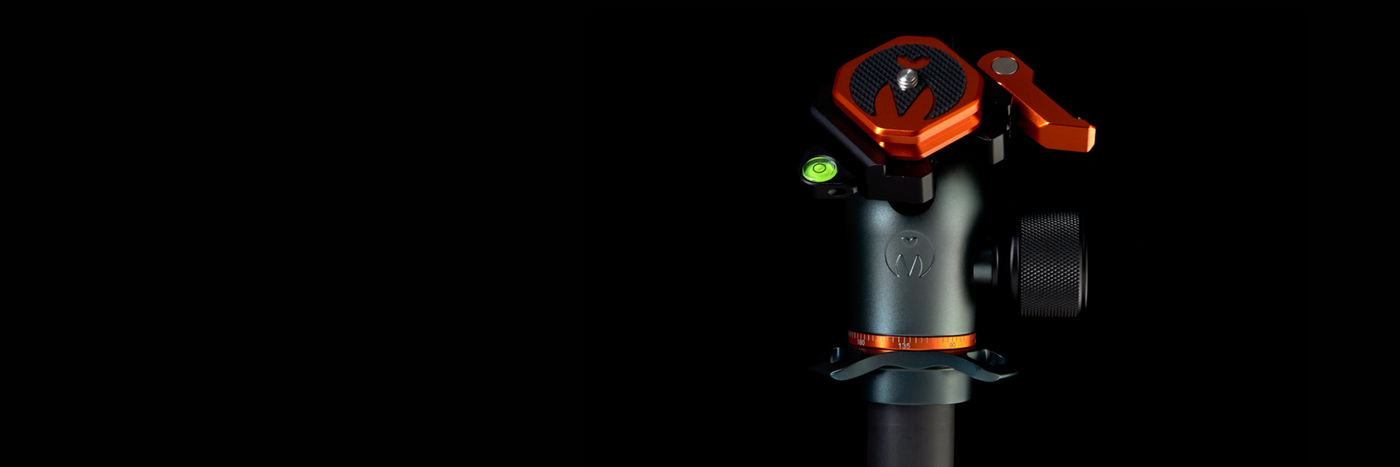

INCLUDES AIRHED VU

  • Max Height 1.38 m / 54.44  "
  • Max Height w/o column 1.04 m / 40.82  "
  • Min Height 104 mm / 4.09 "
  • Monopod Max Height 1.44 m / 56.61 "
  • Folded Length 356 mm / 14.02 "
  • 5 Section Legs / 2 Section Column
  • Load Capacity at 23º - 30 kg / 66 lbs
    Load Capacity at 55º - 20 kg / 44 lbs
    Load Capacity at 80º - 10 kg / 33 lbs
  • Tripod Weight 1.27 kg / 2.8 lbs
  • Total Kit Weight 1.62 kg / 3.57 lbs
  • Leg Angles 23º, 55º, 80º
  • Max Leg Tube Diameter 23 mm / 0.9 "

SPECIAL THANKS

Special thanks to Ray Barbee for being part of our pro-team, and for continuing to support our little brand, and for his dedication and commitment to the arts and photography. We are grateful and inspired.

Special thanks also to George Powell of Powell Peralta Skateboards / Skate One Corp., for graciously allowing us to use elements of his brand in our artworks, and for his encouragement and kind words.

Powell, Bones and Animal Chin logos in the artwork all used with permission.

RAY KIT - bronze

With AirHed Vu
BUY NOW

RAY KIT - grey

With AirHed Vu
BUY NOW

RAY - bronze

Tripod only
BUY NOW

RAY - grey

Tripod only
BUY NOW

RAY GALLERY

Below are images of RAY*, in its various different configurations.

*Foot accessories (like Vanz shown in some images) are sold separately.
