Ellie Universal L-Bracket system

Regular price £6999 GBP

Looking for a universal L-bracket that fits a wide variety of cameras? Ellie is the one for you.

  • Adjustable base plate enables you to get the right length for your camera
  • Front to back adjustment on the camera allows you to position correctly to access the ports you need
  • Choice of 4 different base plates - Standard or Short Arca Swiss, and Standard or Short PD, for compatibility with Peak Design Capture Clip v3

To see how Ellie fits on to different camera models click HERE.

Colour:
L-bracket Options

Delivery and Shipping

Delivery

For most UK addresses, orders are sent via Royal Mail First Class or DPD for larger or heavier items.

Delivery typically takes 1-5 working days, depending on the service used. Many orders placed before 12 noon arrive the next working day (Monday-Friday).

Orders over £50 qualify for free shipping to most UK addresses.

Remote Locations (Highlands, Islands & Northern Ireland)

Deliveries to Scottish Highlands, offshore islands, and Northern Ireland may require alternative courier services due to higher delivery costs in these regions.

Small parcels under 350g are sent via Royal Mail and qualify for free shipping if the order value is over £50.

Larger or heavier items are shipped via UPS, and shipping charges will be calculated at checkout, but in most cases it will cost £9.99.

Delivery typically takes 2-5 working days, depending on the service used.

Returns

If you are not satisfied with your purchase, we have a 30-day returns period. In the first instance, please contact our support team via email: support@3leggedthing.com

Got a question?

Just ask, we won't bite...
Contact us here.

Description


The World's Best Modular L-Bracket System

The Ellie System is a world-first in modular camera brackets. Combining a reversible, rotatable vertical aspect, with one of four precision base units, the Ellie is the most functional, most compatible L-Bracket in the world and the ONLY L-Bracket system with Peak Design & ARCA Swiss compatibility.

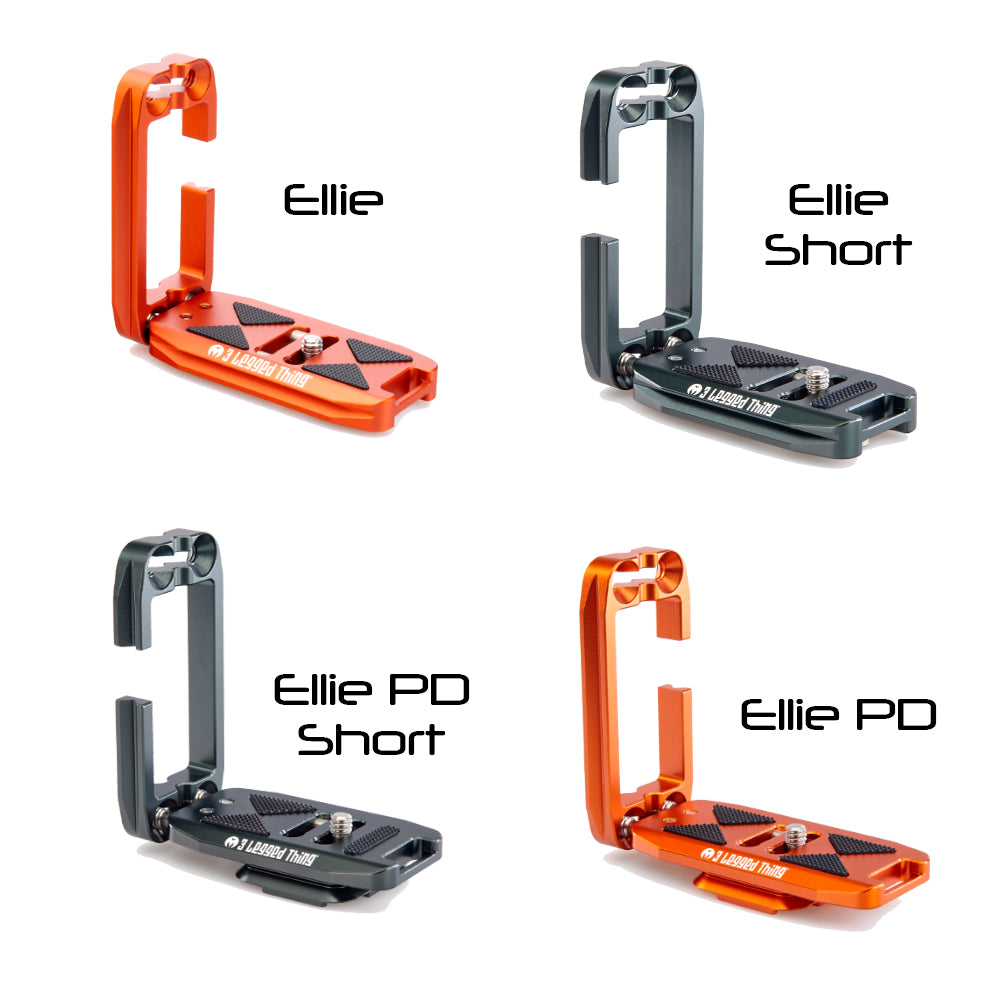

Choice of FOUR different base units
Ellie has four possible base options giving an unprecedented level of compatibility. With two shoe choices - ARCA or Peak Design V3 Capture, and two base lengths - Standard and Short, there's an Ellie to suit every camera.

Figure Hugging
With two-axis adjustments, Ellie fits more cameras than any other universal L-Bracket, with an unprecedented level of functionality.

Modular

Ellie's detachable release plate can be used in isolation, or with the vertical aspect. Dual ARCA-Swiss profile sides and symmetrical 1/4"-20 threaded ends enable the vertical axis to be configured in 8 positions, enabling more cable access than ever before.

Manfrotto tripod owners: all of our L-brackets are standard 38 mm / 1.5" Arca-Swiss compatible. Manfrotto Arca-Swiss heads may have a lipped clamp that will prevent L-bracket use. Manfrotto RC2 plate heads are not compatible. Please check your head model before ordering.

Specifications


ELLIE & ELLIE PD

Standard 85mm BASE (Peak Design or Arca Swiss options)


BASE Length: 85mm / 3.35 "


Adjustable Width: 95 mm - 128 mm / 3.74 “ - 5.04 "


Vertical Aspect Height: 85 mm / 3.35 "


Base Width: 38 mm / 1.5 "


Side Width: 38 mm / 1.5 "


Weight Ellie: 94 g / 3.32 oz


Weight Ellie PD: 96 g / 3.39 oz

ELLIE SHORT & ELLIE PD SHORT

Short 70mm BASE (Peak Design or Arca Swiss options)

BASE Length: 70mm / 2.75 "


Adjustable Width: 80 mm - 113 mm / 3.15 “ - 4.45 "


Vertical Aspect Height: 85 mm / 3.35 "


Base Width: 38 mm / 1.5 "


Side Width: 38 mm / 1.5 "


Weight Ellie Short: 88 g / 3.1 oz


Weight Ellie PD Short : 90 g / 3.17 oz



Which Ellie is right for you?

Take the quiz and watch the video...

If you don't have your camera to hand, and so can't answer question 2 of our "Which Ellie?" section, this video explains the four different versions, and who they were designed for.

Ellie Universal L-Bracket system: The Features


Choice of FOUR different base units Ellie has four possible base options giving an unprecedented level of compatibility.

With two shoe choices - Arca or Peak Design V3 Capture, and two base lengths - Standard and Short, there's an Ellie to suit every camera. Figure Hugging With two-axis adjustments, Ellie fits more cameras than any other universal L-Bracket, with an unprecedented level of functionality.

Modular Ellie's detachable release plate can be used in isolation, or with the vertical aspect. Dual Arca-Swiss profile sides and symmetrical 1/4"-20 threaded ends enable the vertical axis to be configured in 8 positions, enabling more cable access than ever before.

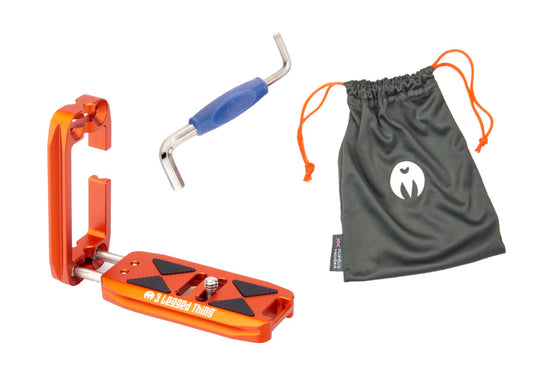

What's in the box?


  • Ellie Arca-Swiss compatible quick-release L-Bracket with 1/4"-20 screw thread, two security screws along the base* and two long retaining bolts for upright adjustment.
  • Dual-ended mini tool with two hex keys for adjustment of vertical aspect and to secure stainless steel sliding rods into place
  • Microfiber bag
  • *Only on ELLIE-C, ELLIE-G, ELLIE-S-C and ELLIE-S-G. Not the Peak Design v3 capture compatible versions.

Watch the Video: Ellie Universal L-Bracket system

ELLIE COMPATIBILITY

Below are links to images of Ellie on a selection of popular Canon, Nikon, Sony, Fujifilm, Olympus, & Panasonic cameras. We'd like to include images from other camera manufacturers, but haven't yet been able to get access to those products. To view Ellie on these cameras, click the images below.

ELLIE & ELLIE PD BOTH HAVE IDENTICAL 85mm BASE LENGTH, AND ELLIE SHORT & ELLIE SHORT PD HAVE IDENTICAL 70mm BASE LENGTH SO THE IMAGE PACKS BELOW REPRESENT BOTH STANDARD AND PD VERSIONS.

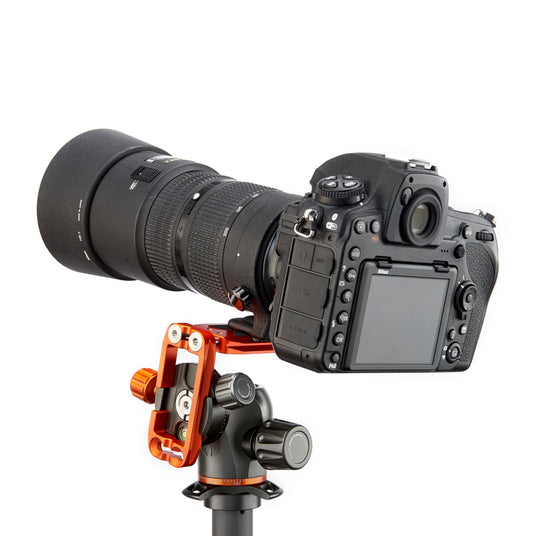

  • NIKON CAMERAS

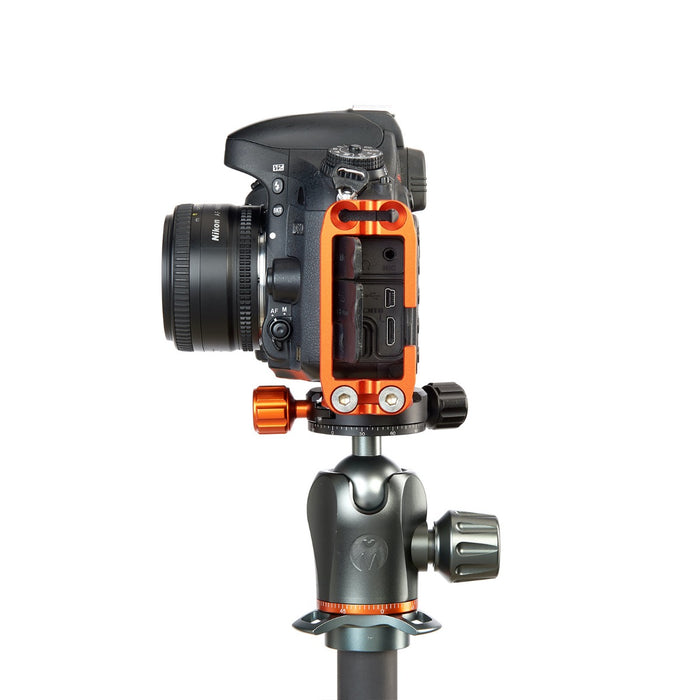

    See images of Ellie on Nikon Cameras including the D750, D850, D7500, and Z fc.

  • CANON CAMERAS

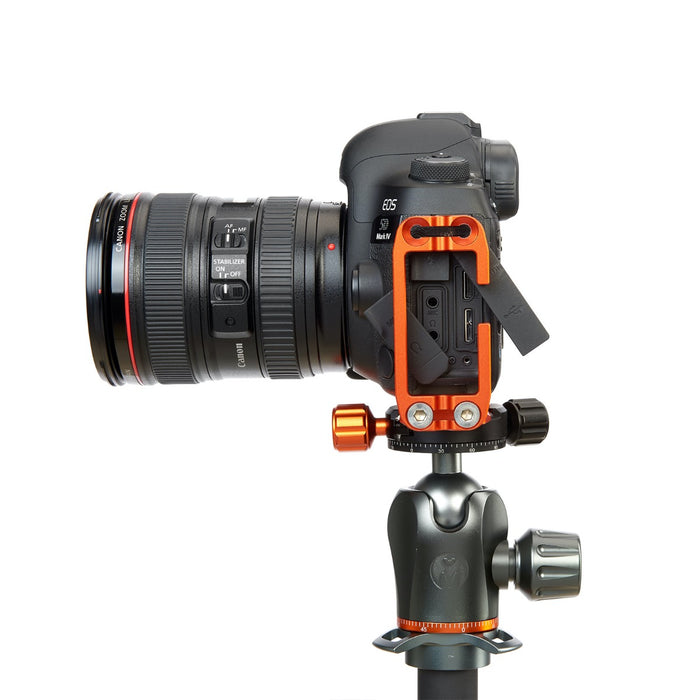

    See images of Ellie on Canon cameras including the 5D MK IV, 6D Mk II, 7D Mk II, 80D, and EOS-R.

  • FUJIFILM CAMERAS

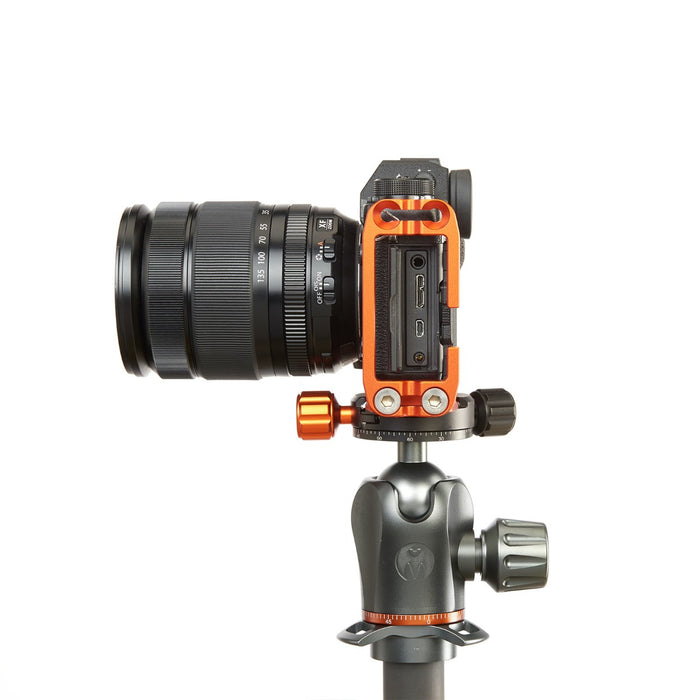

    See images of Ellie on Fujifilm cameras including the Fujifilm X-T3, X-T20, X-Pro2, and X100F.

  • PANASONIC CAMERAS

    See images of Ellie on Panasonic cameras including the G9, and GH5.

  • SONY CAMERAS

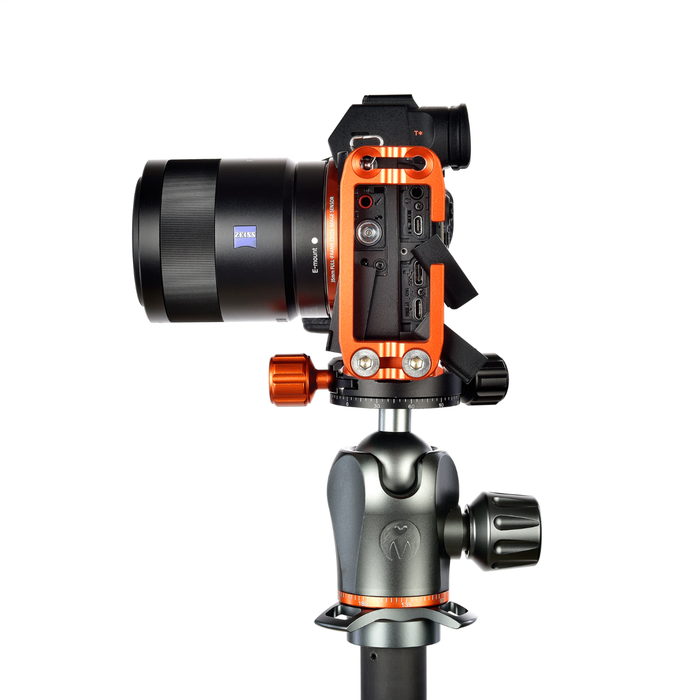

    See images of Ellie on Sony cameras including the a7 III, a7R III, a7S II, a9, and a6400.

  • OLYMPUS CAMERAS

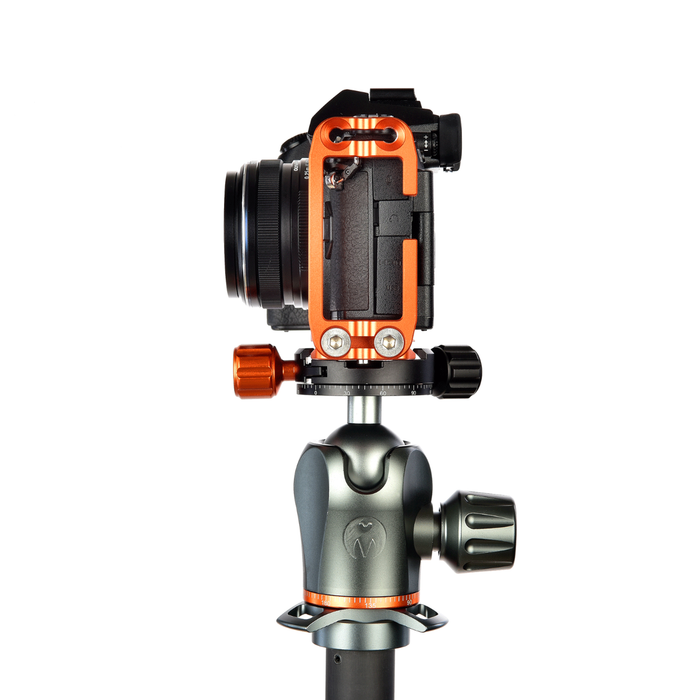

    See images of Ellie on Olympus cameras including the OM-D EM1 Mk 2, and EM10 Mk 3.
