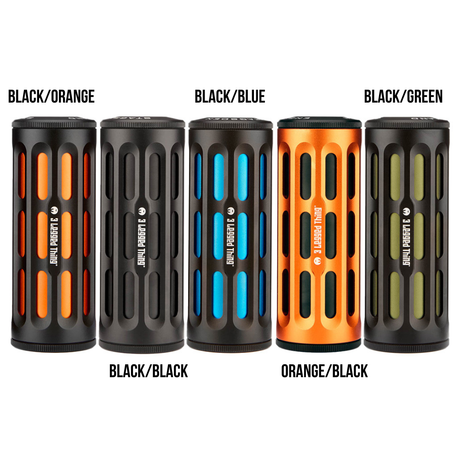

The ModFather Airgun Moderator - Slotted
Modfather - acoustic engineering with modular madness
Low stock (14 units)Regular price $17740 USDUnit price /Unavailable

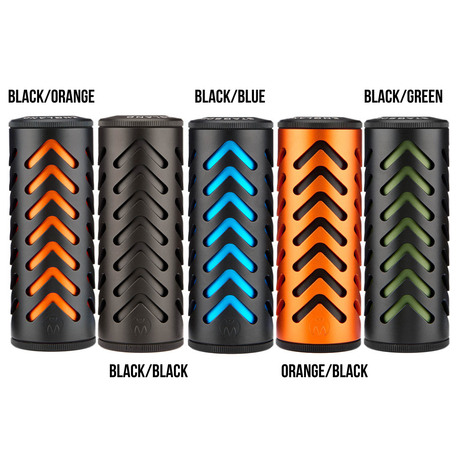

The ModFather Airgun Moderator - Chevron
Modfather - acoustic engineering with modular madness
Low stock (20 units)Regular price $19105 USDUnit price /Unavailable

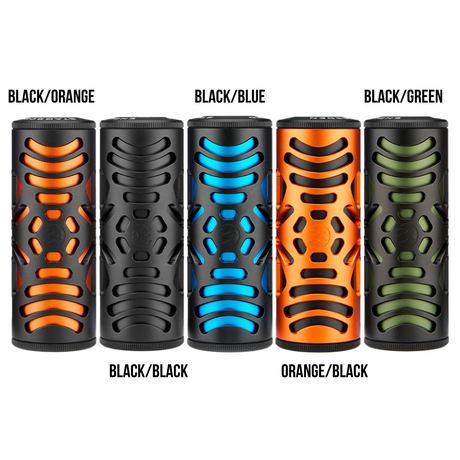

The ModFather Airgun Moderator - SpiderWeb
Modfather - acoustic engineering with modular madness
Low stock (16 units)Regular price $20470 USDUnit price /Unavailable
The pellet leaves first.
On a bare muzzle, the air that fired your pellet catches it. It expands past the speed of sound, overtakes the pellet within a few calibres of the crown, and pushes past it in a plume that's rarely quite symmetrical. Off-centre air, off-centre nudge. The Modfather takes that away.
Schematic — geometry and timing are illustrative, not measured. The plates show the mechanism, not a test result.
Because the Modfather's chambers are large and the air meets them immediately, the expansion happens fast and it happens early. Air that has lost its pressure has lost its speed. By the time the pellet reaches the end cap, the air is behind it and staying there. The pellet exits into air that has already given up most of what it had.
The honest way to put it: the Modfather doesn't make your rifle more accurate. It removes something that was making it less accurate. And it removes the flinch, which on most rifles is the larger of the two variables and stands behind the trigger.
Fitting any moderator adds mass at the muzzle and changes how the barrel behaves. Expect your point of impact to move, and re-zero after fitting or after changing configuration.
Slow the air down and the pellet is simply gone before the air matters.
A bang is just air in a hurry
The same slow-down does the other job. Your rifle isn't loud because of how much air it uses — it's loud because of how fast that air arrives. Release the same air slowly enough and it makes very little sound at all.
All the Modfather is doing is stretching the release. The air still leaves. It just takes long enough that your ears never register an event.
Schematic — illustrates the principle, not a measurement. The shaded area under the curve is the air leaving your barrel. It never changes. Only its shape does.
The pellet is quiet. The air is the problem.
A pre-charged pneumatic makes almost all of its noise in one place, at one instant: the moment the compressed air behind the pellet meets the atmosphere at the crown. It isn't the pellet — the pellet is travelling comfortably below the speed of sound and makes very little noise of its own.
Which is the good news. You aren't fighting several noise sources. You're fighting one. A single, well-understood problem is an engineering problem.
Three mechanisms, one objective
A moderator is not a plug and it isn't a sponge. It's a machine for taking energy away from moving air, and it does it three ways at once. None of them is a trick. All of them are physics, executed carefully.
Give it somewhere to go
Pressure is crowding. Open a big enough room and the crowd stops shoving. The Modfather hands the air 46ml the instant it clears the crown, and 46ml more behind that.
Make it take the long way
Air forced to turn, double back and squeeze through structure loses energy to friction every time it changes direction. It reaches the exit having spent most of what it had on the journey.
Let it turn into heat
Energy can't be destroyed, only moved. Drive a pressure wave through acoustic foam and the structure flexes, drags against itself, and converts that wave into a fractional rise in temperature. The noise doesn't go anywhere. It becomes warmth.
Volume, path and material don't each shave off a slice of the noise. They do one job between them: they slow the air down. Quiet and accuracy are both consequences of the same thing.
Two chambers. 46ml each.
The air clears the crown and falls straight into a volume many times its own. The pressure drops at once — then does it again in the second chamber.
Because the expansion is large and it happens immediately, it also happens fast. The slow-down is essentially complete while the pellet is still inside the tube.
That's the point of the architecture. Not more stages. Earlier ones.

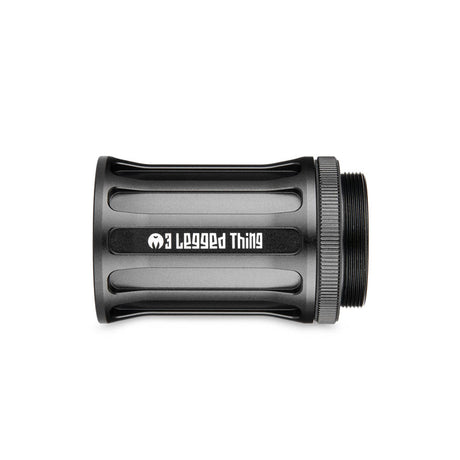

And then there's a third
The extension tube adds another 46ml chamber, identical to the two already there. Total expansion volume goes from 92ml to 138ml — half as much room again for the air to disappear into.
Quieter. And a further chamber's worth of collapse before the end cap means the air is deader still by the time the pellet is clear of it.
Take it off for a walked-up day when you want the shortest package you can carry. Put it back on for the hide. Same moderator, two configurations, thirty seconds between them.
Same air. Taking its time.
The Modfather doesn't hold the air in. It drops it into 92ml of nowhere and lets volume, distance and material finish it off before it can make much of a sound. Quieter is what you hear. Straighter is what you get.
That's the science. The rest is machining.
